kubeadm安装k8s

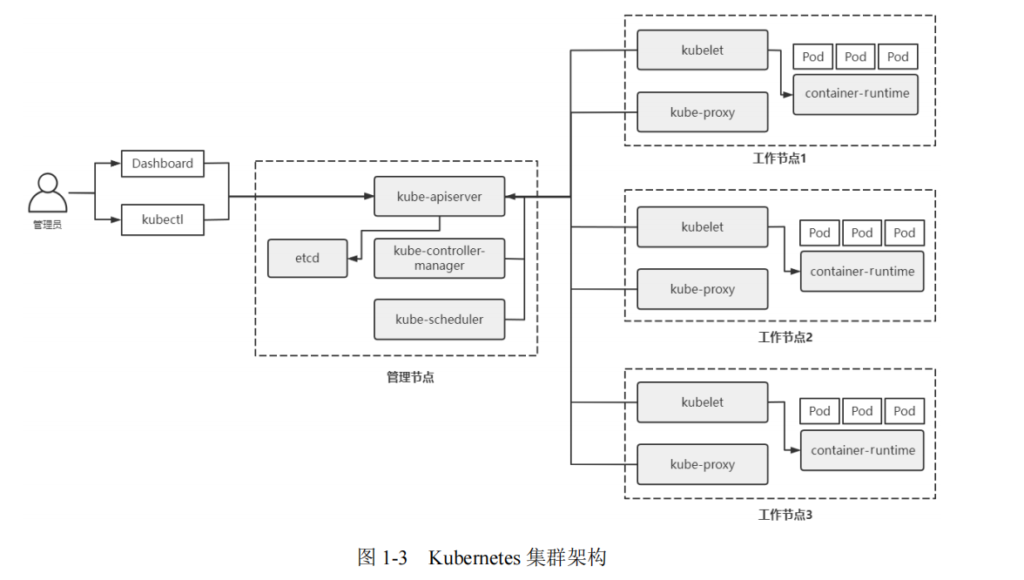

架构图

环境准备

集群角色	主机名	操作系统	IP地址
master	k8s-master	centos7.9	192.168.15.128
node	k8s-node1	centos7.9	192.168.15.129
node	k8s-node2	centos7.9	192.168.15.130

系统配置阿里镜像源

https://developer.aliyun.com/mirror/centos

curl -o /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-7.repo
yum makecache

系统初始化配置

#关闭防火墙：
systemctl stop firewalld
systemctl disable firewalld

#关闭seliunx
setenforce 0
sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config

#关闭swap
swapoff -a  # 临时
sed -ri 's/.*swap.*/#&/' /etc/fstab # 永久

#修改主机名每台主机修改对应的即可
hostnamectl set-hostname k8s-master1
hostnamectl set-hostname k8s-node1
hostnamectl set-hostname k8s-node2


#某些 Kubernetes 网络插件可能使用网络桥接（Bridge），为了确保网络桥接的数据包经
#过 Iptables 处理，需要启用相关的内核参数：
cat > /etc/sysctl.d/k8s.conf << EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF

#必须修修改hosts
cat >> /etc/hosts <<EOF
192.168.15.128 k8s-master
192.168.15.129 k8s-node1
192.168.15.130 k8s-node2
EOF
more /etc/hosts

#时间同步
yum install ntpdate -y
ntpdate time.windows.com

安装docker

https://developer.aliyun.com/mirror/docker-ce

CentOS 7（使用 yum 进行安装）

# step 1: 安装必要的一些系统工具
sudo yum install -y yum-utils device-mapper-persistent-data lvm2
# Step 2: 添加软件源信息
sudo yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
# Step 3
sudo sed -i 's+download.docker.com+mirrors.aliyun.com/docker-ce+' /etc/yum.repos.d/docker-ce.repo
# Step 4: 更新并安装Docker-CE
sudo yum makecache fast
sudo yum -y install docker-ce
# Step 4: 开启Docker服务
systemctl enable docker.service
systemctl start docker
systemctl status docker


# 注意：
# 官方软件源默认启用了最新的软件，您可以通过编辑软件源的方式获取各个版本的软件包。例如官方并没有将测试版本的软件源置为可用，您可以通过以下方式开启。同理可以开启各种测试版本等。
# vim /etc/yum.repos.d/docker-ce.repo
#   将[docker-ce-test]下方的enabled=0修改为enabled=1
#
# 安装指定版本的Docker-CE:
# Step 1: 查找Docker-CE的版本:
# yum list docker-ce.x86_64 --showduplicates | sort -r
#   Loading mirror speeds from cached hostfile
#   Loaded plugins: branch, fastestmirror, langpacks
#   docker-ce.x86_64            17.03.1.ce-1.el7.centos            docker-ce-stable
#   docker-ce.x86_64            17.03.1.ce-1.el7.centos            @docker-ce-stable
#   docker-ce.x86_64            17.03.0.ce-1.el7.centos            docker-ce-stable
#   Available Packages
# Step2: 安装指定版本的Docker-CE: (VERSION例如上面的17.03.0.ce.1-1.el7.centos)
# sudo yum -y install docker-ce-[VERSION]

安装k8s软件

https://developer.aliyun.com/mirror/kubernetes

cat <<EOF | tee /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.28/rpm/
enabled=1
gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.28/rpm/repodata/repomd.xml.key
EOF

setenforce 0
yum install -y kubelet kubeadm kubectl
systemctl enable kubelet && systemctl start kubelet

安装 cri-docker

Kubernetes 1.20 版本发布时宣布：为了优化核心代码，减少维护负担，将在1.24 版本中正式移除“Dockershim”，而当时 Docker 不支持 CRI，这就意味着 Kubernetes无法再将 Docker 作为容器运行时。Docker 官方为了解决这个问题，与Mirantis 公司合作开发了一个名为“cri-dockerd”的代理程序，负责 kubelet 与 Docker 之间的通信.

因此，从 Kubernetes 1.24 版本及更高版本开始，使用 Docker 作为容器运行时，需要安装 cri-dockerd。你可以在 GitHub Releases 页面（https://github.com/Mirantis/cri-dockerd/releases）上找到适用于你系统平台版本的安装包，下载该安装包，然后将其上传到所有节点上并进行安装.

[root@localhost ~]# rpm -ivh cri-dockerd-0.3.2-3.el7.x86_64.rpm

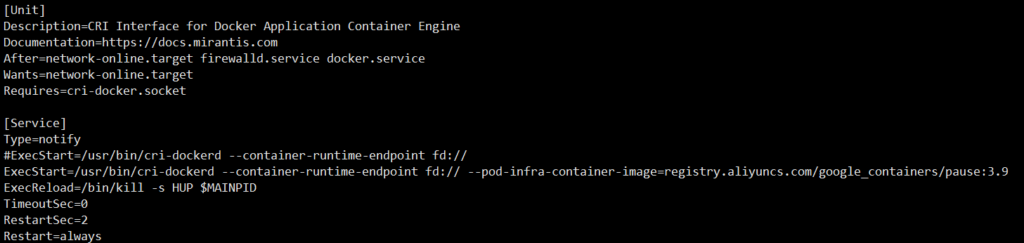

安装完成后，修改 Systemd 服务文件，将依赖的 Pause 镜像指定为阿里云镜像地址：

cp /usr/lib/systemd/system/cri-docker.service /usr/lib/systemd/system/cri-docker.service.bakup
vim /usr/lib/systemd/system/cri-docker.service
ExecStart=/usr/bin/cri-dockerd --container-runtime-endpoint fd:// --pod-infra-container-image=registry.aliyuncs.com/google_containers/pause:3.9

systemctl start cri-docker
systemctl enable cri-docker
systemctl status cri-docker

安装master节点

安装 kubeadm 和 kubelet

kubeadm init --apiserver-advertise-address=192.168.15.128 --image-repository=registry.aliyuncs.com/google_containers --kubernetes-version=v1.28.0 --pod-network-cidr=10.244.0.0/16 --service-cidr=10.96.0.0/12 --cri-socket=unix:///var/run/cri-dockerd.sock

该命令中各参数含义如下。

 –apiserver-advertise-address：指定 API Server 监听的 IP 地址。如果没有设置，则

将使用默认的网络接口。

 –image-repository：指定镜像仓库地址。默认值为“registry.k8s.io”，但该仓库在

中国无法访问，因此这里指定阿里云仓库。

 –kubernetes-version：指定 Kubernetes 版本。

 –pod-network-cidr：指定 Pod 网络的 CIDR 地址范围。

 –service-cidr：指定 Service 网络的 CIDR 地址范围。

 –cri-socket：指定 kubelet 连接容器运行时的 UNIX 套接字文件。

这是执行成功的日志

[root@k8s-master ~]# kubeadm init --apiserver-advertise-address=192.168.15.128 --image-repository=registry.aliyuncs.com/google_containers --kubernetes-version=v1.28.0 --pod-network-cidr=10.244.0.0/16 --service-cidr=10.96.0.0/12 --cri-socket=unix:///var/run/cri-dockerd.sock
[init] Using Kubernetes version: v1.28.0
[preflight] Running pre-flight checks
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [k8s-master kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local] and IPs [10.96.0.1 192.168.15.128]
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "front-proxy-ca" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] Generating "etcd/ca" certificate and key
[certs] Generating "etcd/server" certificate and key
[certs] etcd/server serving cert is signed for DNS names [k8s-master localhost] and IPs [192.168.15.128 127.0.0.1 ::1]
[certs] Generating "etcd/peer" certificate and key
[certs] etcd/peer serving cert is signed for DNS names [k8s-master localhost] and IPs [192.168.15.128 127.0.0.1 ::1]
[certs] Generating "etcd/healthcheck-client" certificate and key
[certs] Generating "apiserver-etcd-client" certificate and key
[certs] Generating "sa" key and public key
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
[kubeconfig] Writing "admin.conf" kubeconfig file
[kubeconfig] Writing "kubelet.conf" kubeconfig file
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
[kubeconfig] Writing "scheduler.conf" kubeconfig file
[etcd] Creating static Pod manifest for local etcd in "/etc/kubernetes/manifests"
[control-plane] Using manifest folder "/etc/kubernetes/manifests"
[control-plane] Creating static Pod manifest for "kube-apiserver"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
[control-plane] Creating static Pod manifest for "kube-scheduler"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Starting the kubelet
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s
[apiclient] All control plane components are healthy after 6.004401 seconds
[upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config" in namespace kube-system with the configuration for the kubelets in the cluster
[upload-certs] Skipping phase. Please see --upload-certs
[mark-control-plane] Marking the node k8s-master as control-plane by adding the labels: [node-role.kubernetes.io/control-plane node.kubernetes.io/exclude-from-external-load-balancers]
[mark-control-plane] Marking the node k8s-master as control-plane by adding the taints [node-role.kubernetes.io/control-plane:NoSchedule]
[bootstrap-token] Using token: aqrwo8.base8cd5kmqhmi53
[bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles
[bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to get nodes
[bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstrap-token] Configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstrap-token] Configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstrap-token] Creating the "cluster-info" ConfigMap in the "kube-public" namespace
[kubelet-finalize] Updating "/etc/kubernetes/kubelet.conf" to point to a rotatable kubelet client certificate and key
[addons] Applied essential addon: CoreDNS
[addons] Applied essential addon: kube-proxy

Your Kubernetes control-plane has initialized successfully!

To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

Alternatively, if you are the root user, you can run:

  export KUBECONFIG=/etc/kubernetes/admin.conf

You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
  https://kubernetes.io/docs/concepts/cluster-administration/addons/

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join 192.168.15.128:6443 --token aqrwo8.base8cd5kmqhmi53 \
	--discovery-token-ca-cert-hash sha256:a04dbbc1319920d9b0e5a44ef3938f7465e61686b6a0528544d4152c910b76b8

根据上述提示，执行以下命令开始使用集群：

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

这些命令是将文件“/etc/kubernetes/admin.conf”复制到“$HOME/.kube/config”中，

以便 kubectl 根据该配置文件连接和管理 Kubernetes 集群。

查看master是否安装成功

[root@k8s-master ~]# kubectl get nodes
NAME         STATUS     ROLES           AGE     VERSION
k8s-master   NotReady   control-plane   7m39s   v1.28.13

部署 Node 节点

在两个工作节点上执行上述master节点返回的“kubeadm join”命令，并添加“–cri-socket”参数，

以将这些工作节点添加到集群中：

[root@k8s-node1 ~]# kubeadm join 192.168.15.128:6443 --token aqrwo8.base8cd5kmqhmi53 --discovery-token-ca-cert-hash sha256:a04dbbc1319920d9b0e5a44ef3938f7465e61686b6a0528544d4152c910b76b8 --cri-socket=unix:///var/run/cri-dockerd.sock

执行成功日志如下：

This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.

Run 'kubectl get nodes' on the control-plane to see this node join the cluster.

此时去master节点查看节点

[root@k8s-master ~]# kubectl get nodes
NAME         STATUS     ROLES           AGE   VERSION
k8s-master   NotReady   control-plane   93m   v1.28.13
k8s-node1    NotReady   <none>          30s   v1.28.13

在上述结果中，节点状态显示为“NotReady”，表示该节点尚未准备就绪。这是由于

kubelet 服务未发现网络插件导致的,不要慌。

节点2操作方式同理,此时去master节点查看节点

[root@k8s-master ~]# kubectl get nodes
NAME         STATUS     ROLES           AGE    VERSION
k8s-master   NotReady   control-plane   122m   v1.28.13
k8s-node1    NotReady   <none>          29m    v1.28.13
k8s-node2    NotReady   <none>          10s    v1.28.13

部署网络插件

镜像导入到各个节点后，在master服务器上执行以下命令

 [root@k8s-master ~]# kubectl create -f tigera-operator.yaml

[root@k8s-master ~]# vim custom-resources.yaml
apiVersion: operator.tigera.io/v1
kind: Installation
metadata:
 name: default
spec:
 calicoNetwork:
 ipPools:
 - blockSize: 26
 cidr: 10.244.0.0/16 # 修改此值，与“kubeadm init”命令中指定的 Pod 网络
CIDR 地址范围保持一致
 encapsulation: VXLANCrossSubnet
 natOutgoing: Enabled
 nodeSelector: all()
...
[root@k8s-master ~]# kubectl create -f custom-resources.yaml

等待片刻，查看 Pod 对象：

[root@k8s-master ~]# kubectl get pods -n calico-system
NAME                                       READY   STATUS    RESTARTS   AGE
calico-kube-controllers-85955d4f5b-rgtnt   1/1     Running   0          2m42s
calico-node-7dntf                          1/1     Running   0          2m42s
calico-node-glw6m                          1/1     Running   0          2m42s
calico-node-rzm8z                          1/1     Running   0          2m42s
calico-typha-9cc98854c-lxrtz               1/1     Running   0          2m36s
calico-typha-9cc98854c-xskp5               1/1     Running   0          2m42s
csi-node-driver-drkl7                      2/2     Running   0          2m42s
csi-node-driver-lb6fk                      2/2     Running   0          2m42s
csi-node-driver-t5b6z                      2/2     Running   0          2m42s

所有 Pod 的状态均显示为“Running”，说明 Calico 安装成功。再通过“kubectl get nodes”

命令查看节点，状态转为“Ready”，表示节点准备就绪。

[root@k8s-master ~]# kubectl get nodes
NAME         STATUS   ROLES           AGE     VERSION
k8s-master   Ready    control-plane   3h16m   v1.28.13
k8s-node1    Ready    <none>          103m    v1.28.13
k8s-node2    Ready    <none>          74m     v1.28.13

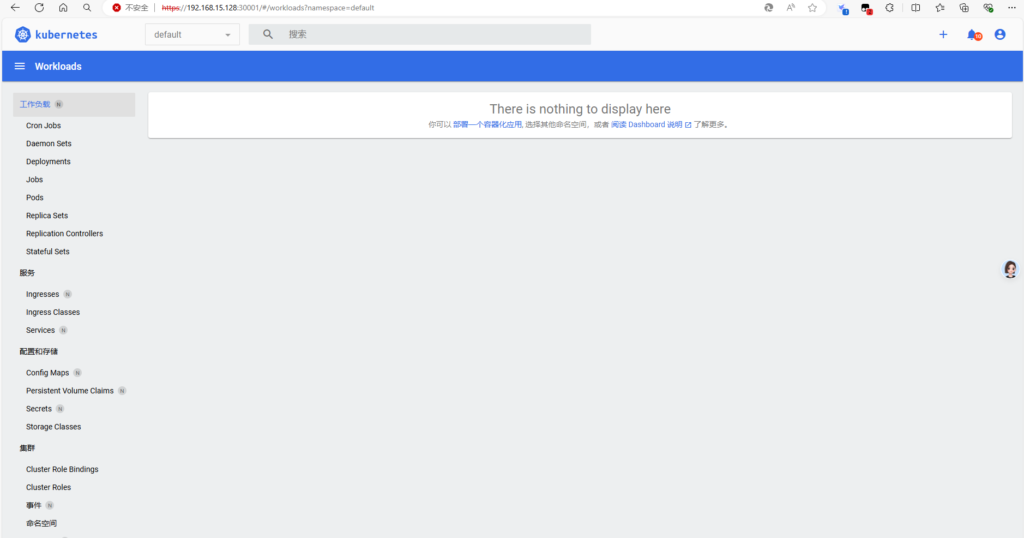

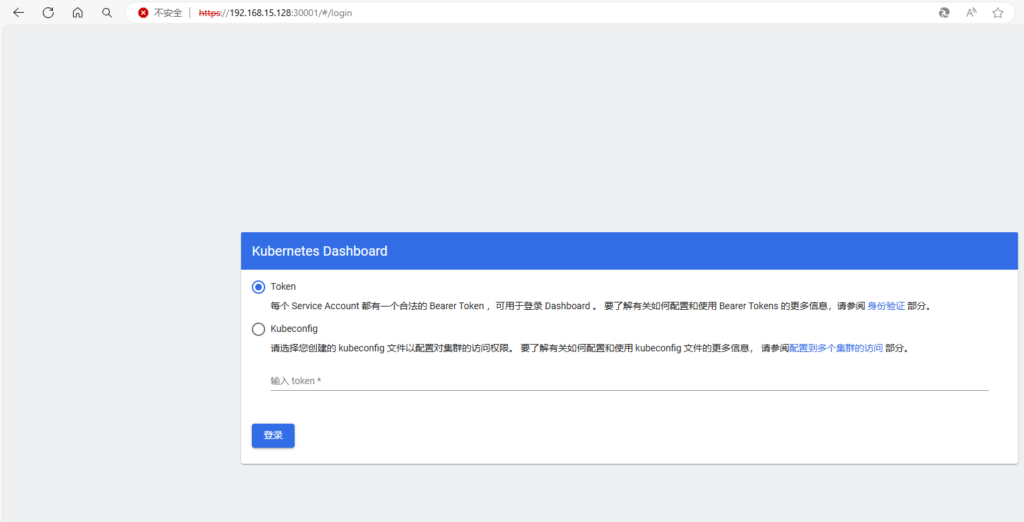

部署 Dashboard

Dashboard 是官方开发的一个 Web 管理系统。通过它，你可以管理集群资源、查看应用概览、查看容器日志和访问容器等操作。

将 Service 的类型设置为“NodePort”类型并指定访问端口，以便将其暴露到集群外部进行访问，修改如下：

[root@k8s-master ~]# vim recommended.yaml
…
kind: Service
apiVersion: v1
metadata:
 labels:
 k8s-app: kubernetes-dashboard
 name: kubernetes-dashboard
 namespace: kubernetes-dashboard
spec:
 type: NodePort # 指定 NodePort 类型
 ports:
 - port: 443
 targetPort: 8443
 nodePort: 30001 # 指定访问端口
 selector:
 k8s-app: kubernetes-dashboard
…

在集群中创建资源：

[root@k8s-master ~]# kubectl apply -f recommended.yaml

查看 Pod 对象

[root@k8s-master ~]# kubectl get pods -n kubernetes-dashboard
NAME                                         READY   STATUS    RESTARTS   AGE
dashboard-metrics-scraper-5657497c4c-4jlvd   1/1     Running   0          9m50s
kubernetes-dashboard-78f87ddfc-vjcn7         1/1     Running   0          9m50s

所有 Pod 的状态都显示为“Running”，说明 Dashboard 安装成功。在浏览器中访问“https://<节点 IP 地址>:30001”，你将看到登录页面

https://192.168.15.128:30001/#/login

创建一个服务账号并授予集群管理员权限：

[root@k8s-master ~]# kubectl create serviceaccount admin-user
serviceaccount/admin-user created

[root@k8s-master ~]# kubectl create clusterrolebinding admin-user --clusterrole=cluster-admin --serviceaccount=kubernetes-dashboard:admin-user
clusterrolebinding.rbac.authorization.k8s.io/admin-user created

根据服务账号创建 Token

[root@k8s-master ~]# kubectl create token admin-user

eyJhbGciOiJSUzI1NiIsImtpZCI6IktaNEx5NDdteVdOWDVYQmVvV3RzSDhwa1ctNFhaSFE0U29rZk9qNF8yaWsifQ.eyJhdWQiOlsiaHR0cHM6Ly9rdWJlcm5ldGVzLmRlZmF1bHQuc3ZjLmNsdXN0ZXIubG9jYWwiXSwiZXhwIjoxNzI0ODQyMTg1LCJpYXQiOjE3MjQ4Mzg1ODUsImlzcyI6Imh0dHBzOi8va3ViZXJuZXRlcy5kZWZhdWx0LnN2Yy5jbHVzdGVyLmxvY2FsIiwia3ViZXJuZXRlcy5pbyI6eyJuYW1lc3BhY2UiOiJkZWZhdWx0Iiwic2VydmljZWFjY291bnQiOnsibmFtZSI6ImFkbWluLXVzZXIiLCJ1aWQiOiJiNThiZjI1Yy01MjQ0LTQyZjUtOGEzYS1kOTE5MWRiZDIxZTcifX0sIm5iZiI6MTcyNDgzODU4NSwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50OmRlZmF1bHQ6YWRtaW4tdXNlciJ9.MSFukU6d2bZn1OPbznjllM4xsYqQuusBNd8AbX8gChiwO74kwD3JIGNizJZpDq0B1vnLV1PG8zykmF08IzW_Si6ztVMZVXVYMG7v-MnK6qy5kXwx647zmy_LIKufxrUCc6UbdYi5Gw5Oo3NmaVvm-4pdfcRKFw9Q23pQfYJDrTlNRby8gyqHNuEmVvrfth5Ct0NIvzHctHfkyXM_rCWZQHn0FlrIKObi1lIXwX8CrExeVDu8ij683y2s84KihR00k6HMbBFVfccZAAUKLPB-yCqtnADPX5txS9o5c8UGh2x2W54G57R5kOcxa7Z6Dy3QSRR4Td9R6NDkS7KEy1U7NQ

将输出的 Token 复制到输入框中，然后单击登录，进入 Dashboard 首页

至此k8s安装完成

清空 Kubernetes 环境

如果需要重新部署或者卸载 Kubernetes 集群环境，可以使用以下命令：

kubeadm reset --cri-socket=unix:///var/run/cri-dockerd.sock

该命令将清空当前节点上由 kubeadm 生成的所有操作和配置。
